HDMI Extenders 1Ch 1080P HDMI KVM Bidi Stereo Audio GPIO Over Fiber Converters
HDMI Fiber Converter Advantages
► Support external stereo audio bi-directional transmission;
► Support RS232 signal unidirectional transmission, baud rate self-adaptive;
► Support general-purpose input/output (GPIO) signal;
► High compatibility, can auto-match source and display device;
► Built-in ESD protection system
Fiber Optic Extender Technical Indexes
| Parameter | Description |
| Video | Maximum data rate | 2.97Gbps |
| Resolution | 1920*1080@60Hz 1920*1080@50Hz 1920*1080@30Hz 1920*1080@25Hz 1920*1080@24Hz 1080I@60Hz 1080I@50Hz 1280*720@60Hz 1280*720@50Hz |
| Audio | Signal type | Stereo |
| K/M | Interface | To PC: MINI-USB To keyboard and mouse: USB-A |
| GPIO | Interface | Industrial terminal |
| RS232 | Signal direction | Unidirectional |
| Baud rate | Self-adaptive, Max:115200bps |
| Data bits | 8 |
| Optical fiber | Interface | LC connector |
| Fiber type | Single-mode single fiber |
| Interface bandwidth | 3Gbps |
Fiber hdmi Extender Overview

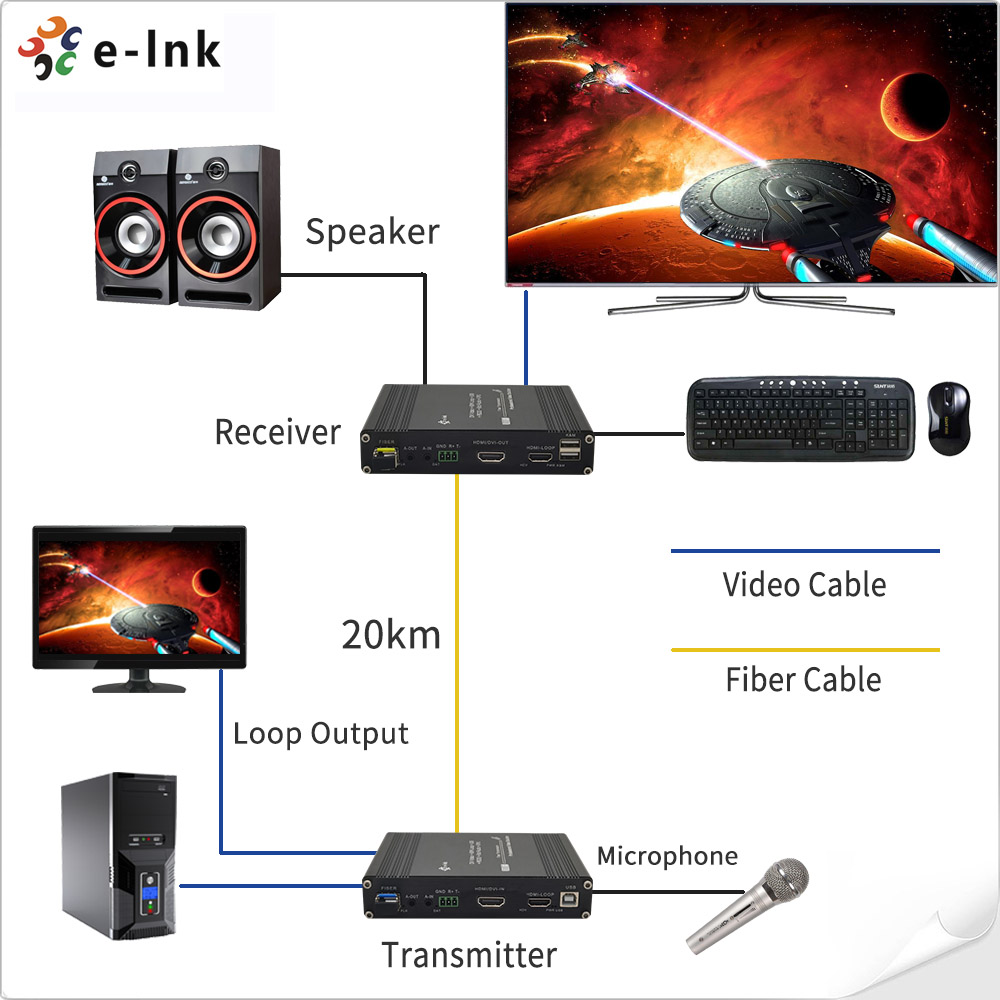

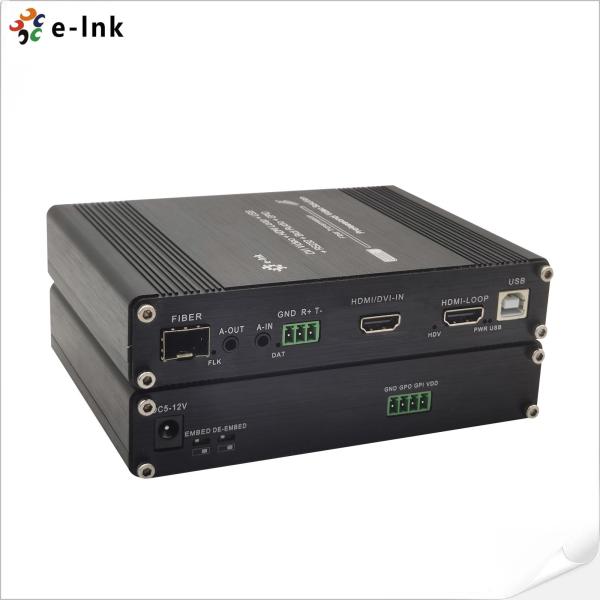

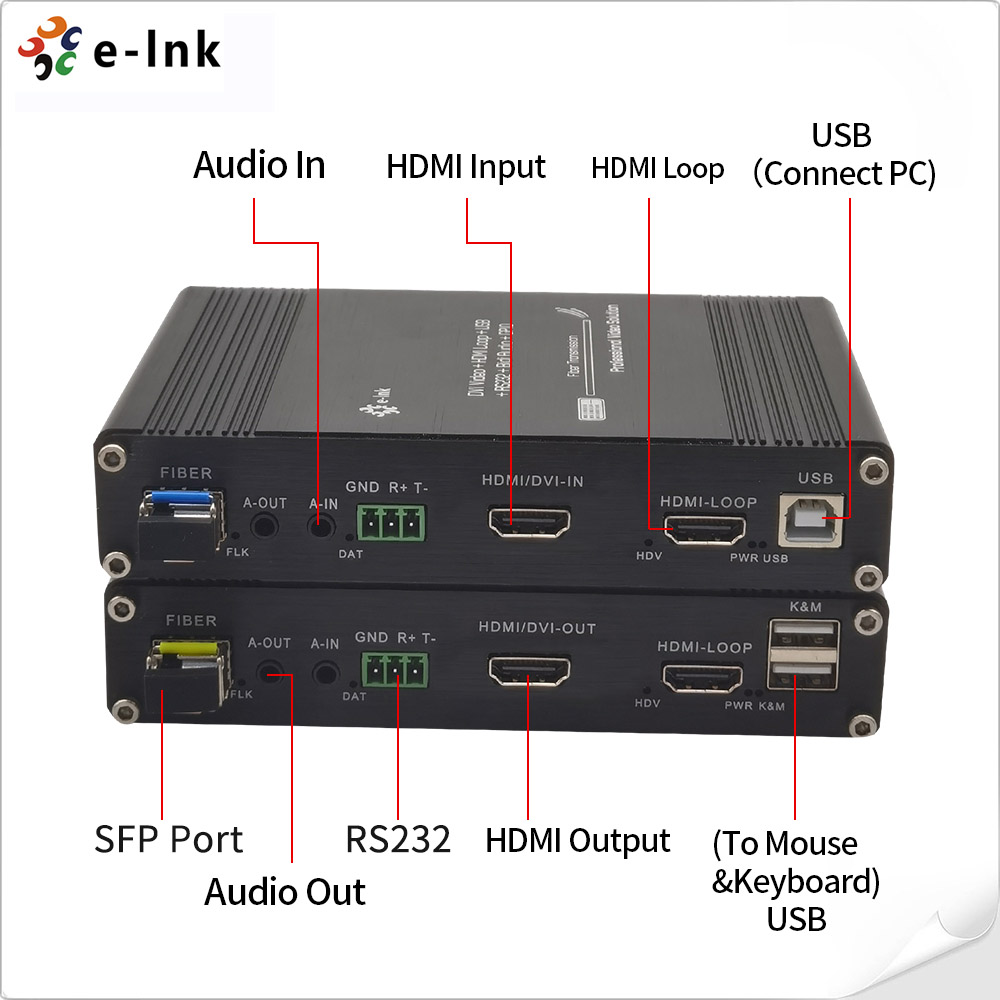

The LNK-KVM-HDMI-1D1BA1GO Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, KVM, RS232, GPIO signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
HDMI To Fiber Optic Converter Ordering Information
| Model | Description |
| LNK-KVM-HDMI-1D1BA1GO | 1Ch 1080P HDMI + 1Ch USB KVM + 1Ch RS232 + 1Ch Bidi Stereo Audio + 1Ch GPIO over Fiber Extender, HDMI Loop Out, SMF, 20KM |
| LNK-HDMI-1D1BA | 1Ch 1080P HDMI + 1Ch RS232 + 1Ch Bidi Stereo Audio over Fiber Extender, HDMI Loop Out, SMF, 20KM |
