SC RJ45 Optical Fiber Fast Gigabit Ethernet Media Converter 60W

Brand Name : E-link

Model Number : LNK-IMC1200P60 Series

Certification : ISO9001

Place of Origin : China

MOQ : 1 unit

Price : US$75-90/pc

Payment Terms : T/T, Western Union, MoneyGram,PayPal

Supply Ability : 10000pcs/Month

Delivery Time : 5-10 working days

Packaging Details : Fiber Media Converter Standard Package

Feature : IEEE 802.3az Energy Efficient Ethernet (EEE)

POE : IEEE802.3at Power over Ethernet

Forward Filter Rate : 148,800pps (100Mbps)

Fiber Port : 1 x SC 100Base-FX

Power Input : 48~57VDC, 2-pin terminal block

Power Output : 48VDC

Contact Now

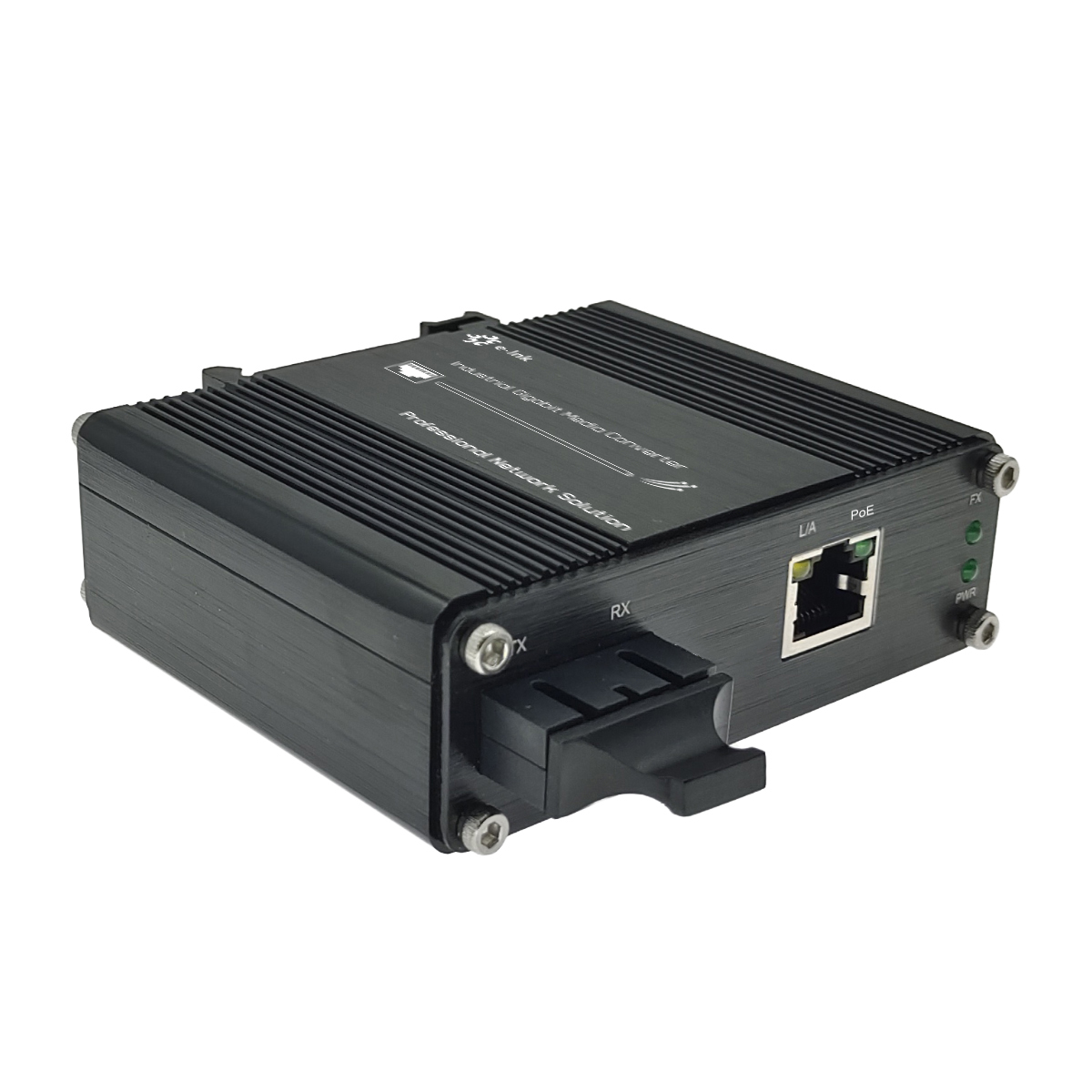

60W POE Fiber Media Converter Industrial 1x100M SC + 2x10/100M Ethernet RJ45

​Fiber Media Converter Advantages

  • 2-port 10/100BASE-T RJ45 with auto MDI/MDI-X function
  • 1-Port 100Base-FX SC
  • 48~57VDC Terminal Block Power Input

Specifications

Interface

Connector:

2 x RJ45

Optical Port:

1 x SC 100Base-FX

Electrical and Mechanical

Input Power:

48~57VDC, 2-pin terminal block

Output Power

48VDC

Power Consumption:

125W Max.

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

SC RJ45 Optical Fiber Fast Gigabit Ethernet Media Converter 60W

Order Information

Model Description
LNK-IMC1200P60 Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Multimode, 1310nm, 2km
LNK-IMC1200P60-20 Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km
LNK-IMC1200P60S-20 Mini Industrial 60W PoE++ Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.
