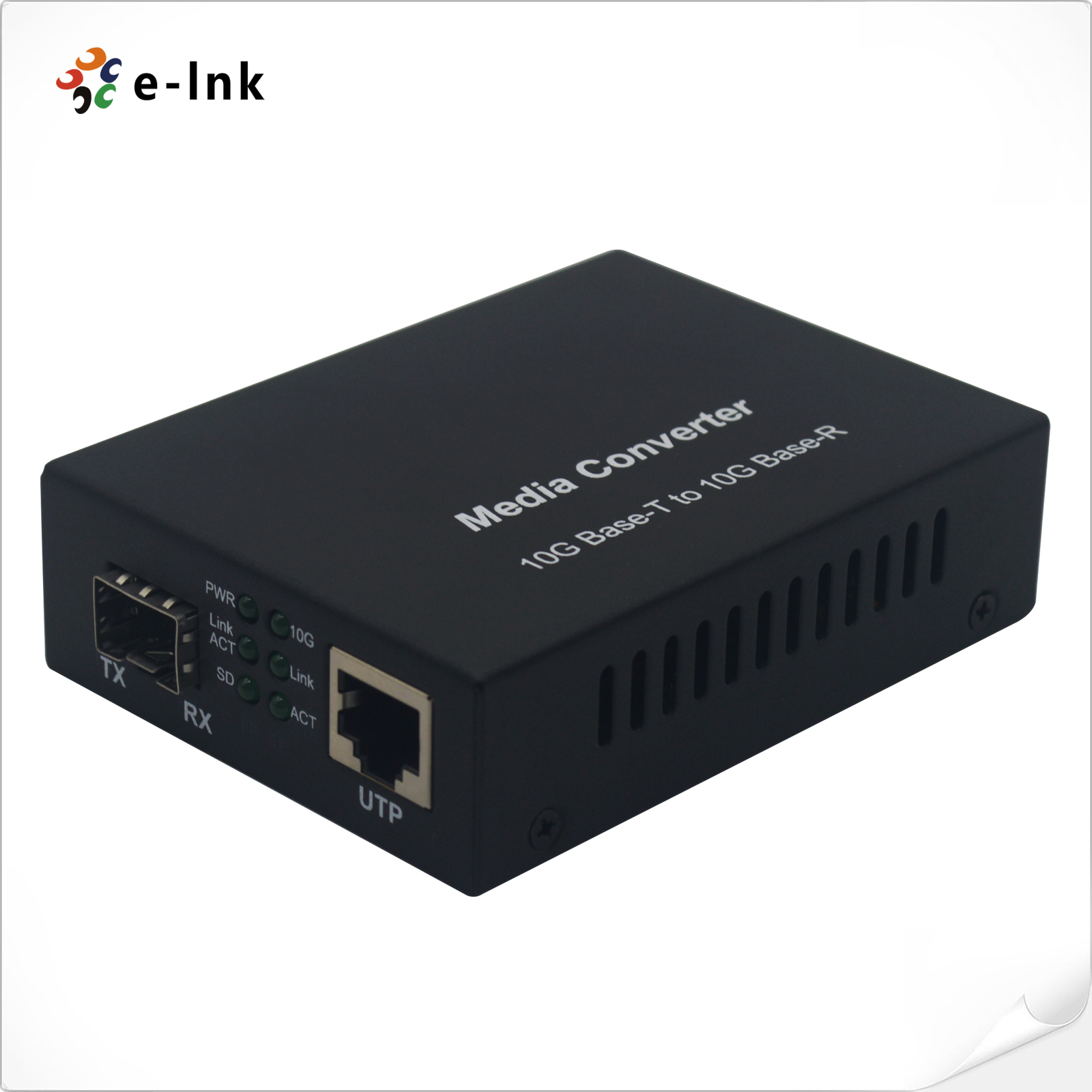

Fiber Media Converter 10G Base-T To 10G Base-R SFP Port Ethernet Media Converter

  • 1
  • 2
  • 3

Brand Name : E-link

Model Number : LNK-MC10G-SFP+

Certification : ROHS,FCC,CE

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 5-12 working days

Packaging Details : Fiber Media Converter Standard Export Package

Keyword : 10G Media Converter

Power Supply : 12V DC

Power consumption : MAX 5W

Port Type : RJ45, SFP Slot

Operation Temperature : 0℃ to 55℃

Casing : Aluminum Case

Contact Now

Fiber Media Converter 10G Base-T To 10G Base-R SFP Port Ethernet Media Converter
10G Media Converter Advantages

► Support Jumbo Frame

► Transparent Transport and very low delay

► Support hot plugging

► Provide reliable long-distance connection

► Fast connection with multi-function

Technical Indexes

Standards

1000Base-T, 2.5GBase-T, 5Gbase-T, 10Gbase-T
1000Base-X, 2500Base-X, 5GBase-R , 10GBase-R

Media Supported

1000Base-T: Cat5 UTP/STP. MAX 100m;

2.5GBase-T: Cat5e UTP/STP. MAX 50m;

5GBase-T: Cat5e UTP/STP. MAX 50m;

10G Base-T: Cat6a UTP/STP. MAX 50m;

Port Type

RJ45, SFP Slot

Work Mode

1000Base-T to 1000Base-X
2.5GBase-T to 2500Base-X

5Gbase-T to 5GBase-R

10Gbase-T to 10GBase-R

Support Modules

10GBASE-SR/LR/ER/ZR:
50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m;
9/125μm single-mode fiber optic cable, up to 10/40/80km

Overview

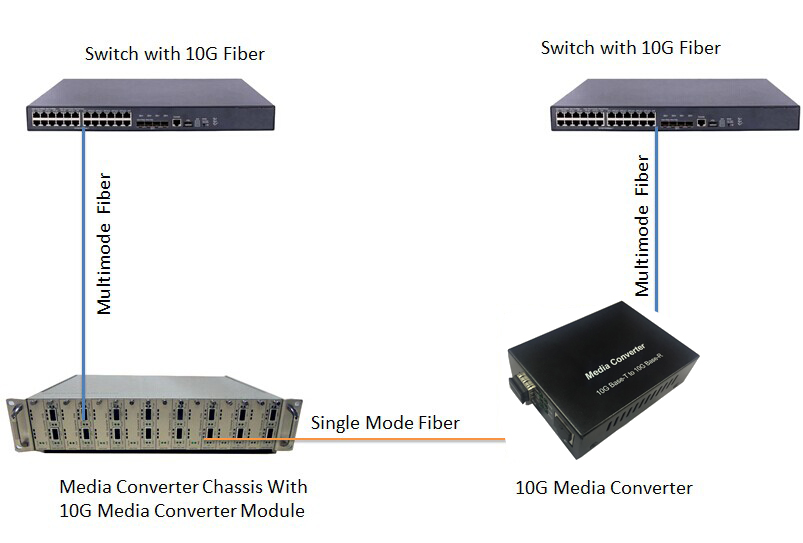

E-link 10G Base-T to 10G Base-R Media Converter supports two types media for network connection such as 10GBase-T and 10GBase-FX. The bridge media converter is designed with a 10Gbase Ethernet PHY chip that connects two types segments operation smoothly. This converter can be used as standalone unit or as slide-in module to the 19" converter rack Chassis for use at a central wiring closet.

Fiber Media Converter 10G Base-T To 10G Base-R SFP Port Ethernet Media Converter

Fiber Media Converter 10G Base-T To 10G Base-R SFP Port Ethernet Media Converter

Ordering Information

Model

Description

LNK-MC10G-SFP+

10G Base-T to 10G Base-R Media Converter, SFP+ Ports, not including SFP+ Modules
