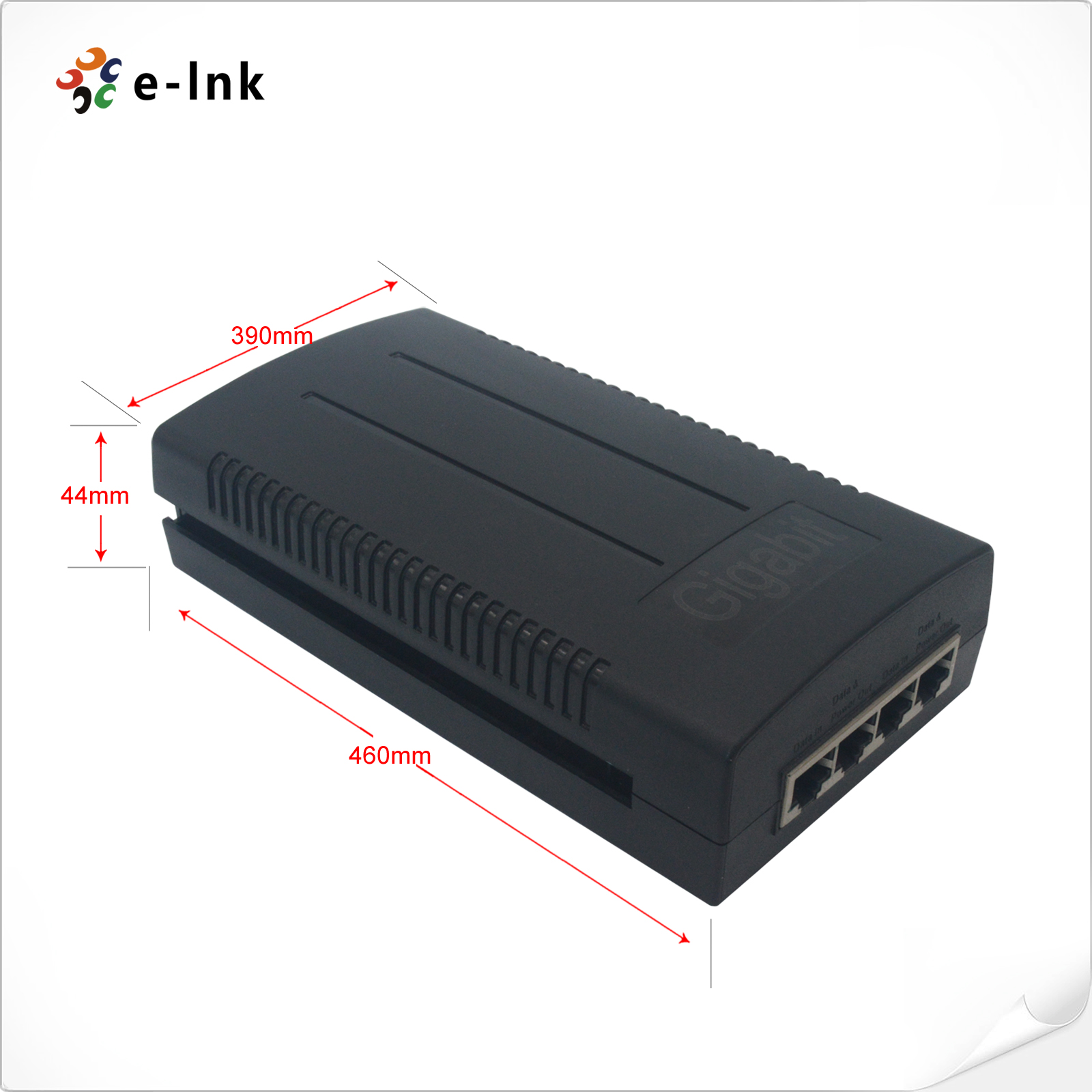

2-Port POE Adapter Injector

Name: 2Port POE Adapter Injector
Brand: E-link
Price: 1 USD

Buy cheap 2-Port POE Adapter Injector product

Brand Name : E-link

Model Number : LNK-POE202

Certification : ROHS,FCC,CE

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 5-12 working days

Packaging Details : PoE Injector Adapter Standard Export Package

Keyword : PoE Power Supply

Input Power : 100-240V AC

Standard : IEEE802.3af/at

Mounting Options : Desktop

Weight : 0.25Kg

Casing : Plastic Case

Contact Now

2-Port POE Adapter Injector

PoE Adapter Advantages

► Up to 15.4W/25.5W of PoE Power

► Fully IEEE802.3af/IEEE802.3at compliant

► Supports 10/100M or 10/100/1000M LAN environment

► Plug & Play

► No configuration required

► Reduced Installation cost

► Safe and Reliable Power to WLAN Access Points

► Automatic Detection and Protection of Non–standard Ethernet Terminals

Technical Indexes

Parameter	Specifications
Features	• Conforms to IEEE802.3af standard RJ-45 • Conforms to IEEE802.3af standard RJ-45
	• Data Input Interface RJ-45 10/100Base-TX/ • Data Input Interface RJ-45 10/100/1000Base-TX
	• Output Port Power Cable Included
Data Rate	10/100Mbps 10/100/1000Mbps
Input Power	AC100-240V
Output Power	15.4W Max IEEE802.3af 30W Max IEEE802.3at
Wiring	• Data provide over pairs 1/2(+) and 3/6(-)
Wiring	• Power over spare pairs 4/5(+) and 7/8(-)
Output type	Single outputa 2RJ45 connector ---POE 2RJ45 connector ----LAN
LED Display	YES
Operating Temperature	0 to +40°C,
Humidity	Max. 95% RH(non-condensing)
Dimension	1709842mm (H×D×W)
Weight	250g

Overview

The LNK-POE202/LNK-POE302 Power over Ethernet (PoE) adapter is designed to supply operational power to surveillance cameras and wireless LAN devices such as access points, bridges and routers. It enables power current to travel on the Ethernet network cable, thus eliminates the need to directly connect a power supply to the wireless LAN device. Power and Data are combined on a single cable, thus eliminating the need for extra power lines and also reducing installation costs and manpower.

2-Port POE Adapter Injector

Ordering Information

Model	Decription
LNK-POE202	2-Port PoE Adapter, 10/100Mbps, IEEE 802.3af 15.4W
LNK-POE202AT	2-Port PoE Adapter, 10/100Mbps, IEEE 802.3at 30W
LNK-POE302	2-Port PoE Adapter, 10/100/1000Mbps, IEEE 802.3af 15.4W
LNK-POE302AT	2-Port PoE Adapter, 10/100/1000Mbps, IEEE 802.3at 30W
