Mini Industrial 10G/5G/2.5G/1G/100M 802.3bt to 10GBASE-X SFP+ Media Converter
Model:LNK-IMC10GP-SFP+
Overview
LNK-IMC10GP-SFP+ is the smallest Industrial-grade 10G 802.3bt PoE Media Converter providing
non-blocking wire-speed performance and great flexibility for 10 Gigabit Ethernet extension in harsh industrial
environment. It is equipped with one 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10GBASE-T RJ45 copper interface
and one 10GBASE-X SFP+ fiber optic interface delivered in an IP40 rugged but compact-sized case with redundant
power system. The LNK-IMC10GP-SFP+ is ideal for wide applications from copper to fiber media conversion
wherever 10Gigabit bandwidth is required in climatically demanding environments with wide temperature ranging
from -40 to 80 degrees C.
Features
► 100/1G/2.5G/5G/10G BASE-T RJ45 interface with auto MDI/MDI-X function, 10GBASE-X SFP+ slot interface
► Compliant with IEEE802.3af/at/bt protocol
► Supports auto-negotiation 100Mbps, 1Gbps half/full duplex and 2.5/5/10Gbps full duplex mode
► Extensive LED indicators for network diagnostics
► 48~57VDC Terminal Block Power Input
► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature
Technical Indexes
| Ethernet |
| PoE Standard | IEEE802.3af/at/bt |
| Forward & Filtering Rate: | 100Mbps |
| 1000Mbps |
| 2.5Gbps |
| 5Gbps |
| 10Gbps |
| Network Cables: | 10G/5G/2.5G/1G/100M BASE-T: 10G – Cat 6A/7 5G – Cat 6/6A/7 1G/2.5G – Cat 5e/6/6A/7 100M – Cat 5/5e/6/6A/7 Cat 5/5e/6/6A/7 UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) 10GBASE-LR/SR/BX: 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m 9/125μm single-mode fiber optic cable, up to 80km |
| Processing Type: | Store-and-Forward |
| Fabric: | 20Gbps |
| Jumbo Frame: | 16K |
| Address Table: | 9K entries, automatic source address learning and aging |
| Interface |
| Connector: | 1 x RJ45 |
| Optical Port: | 1 x SFP+ |
| Environmental |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical |
| Input Power: | 48~57VDC, Redundant Power (4-pin Terminal Block) |
| Power Consumption: | 5W Max |
| Protection: |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| DIP Switch |
| 4-digit DIP switch function | DIP | Function | Settings |
| SW 1 | Reserved | ON - Reserved | OFF - Reserved |
| SW 2 | Reserved | ON - Reserved | OFF - Reserved |
| SW 3 | Reserved | ON - Reserved | OFF - Reserved |
| SW 4 | Reserved | ON - Reserved | OFF - Reserved |
| Note: DIP Switch’s function can be customized based on client’s requirements. |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail/Wall-mount |
| Regulatory Approvals |
| ISO9001, CE, RoHS, FCC |
| EN55022:2010+AC: 2011, Class A |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
| EN 61000-3-3: 2013 |
| EN55024:2010 |
| IEC 61000-4-2: 2008 (ESD) |
| IEC 61000-4-3: 2010 (RS) |
| IEC 61000-4-4: 2012 (EFT) |
| IEC 61000-4-5: 2014 (Surge) |
| IEC 61000-4-6: 2013 (CS) |
| IEC 61000-4-8: 2009 (PFMF) |
Ordering Information
| Model | Description |
| LNK-IMC10GP-SFP+ | Mini Industrial 10G/5G/2.5G/1G/100M 802.3bt to 10GBASE-X SFP+ Media Converter |
| SFP Options | ► SFP+ option. Please select your SFP+ on our SFP+ Options Page (Industrial SFP). |
| ► SFP+ module is to be purchased separately. |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately. |
Product Tags:
|
|

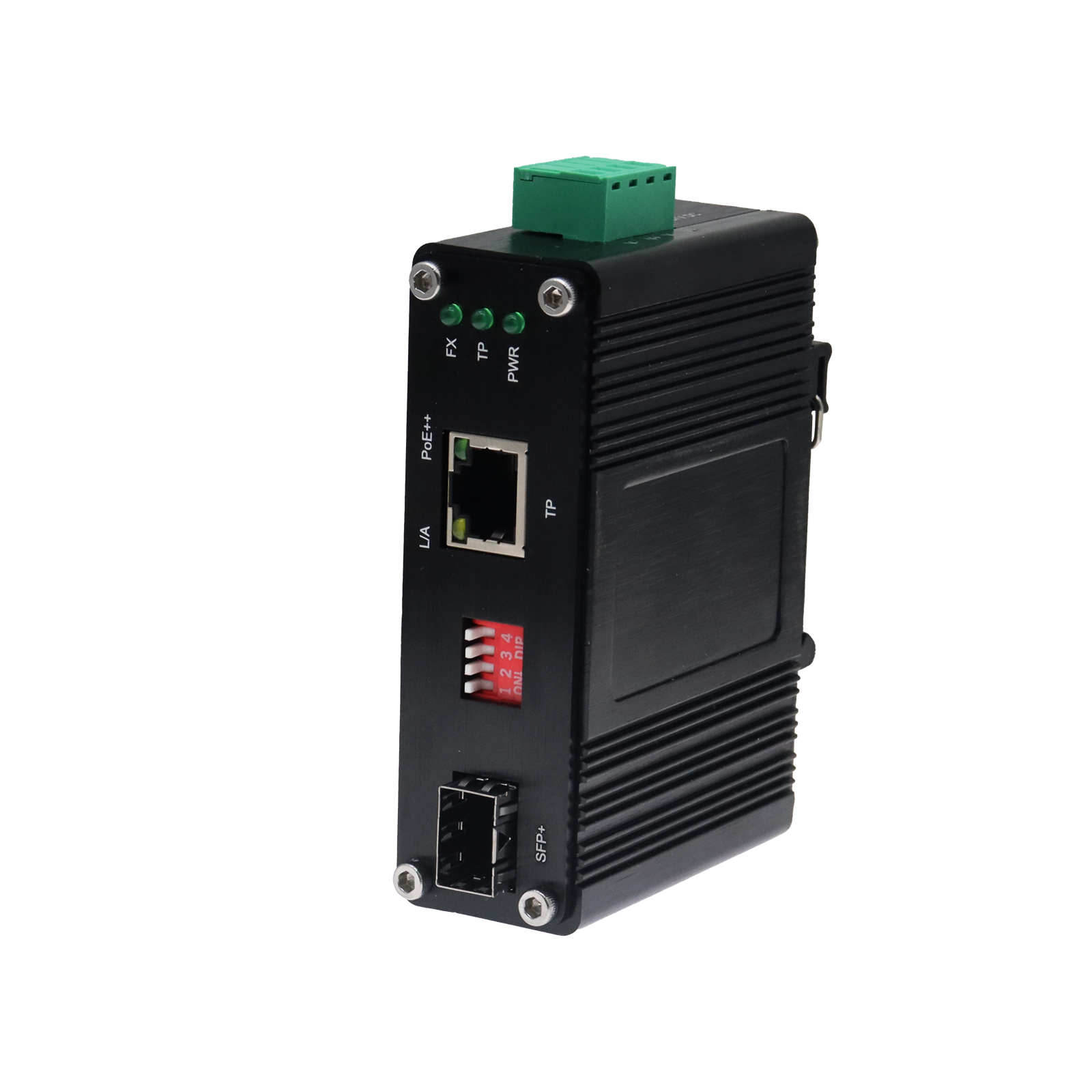

Mini Industrial 10G/5G/2.5G/1G/100M 802.3bt to 10GBASE-X SFP+ Media Converter Images
|
