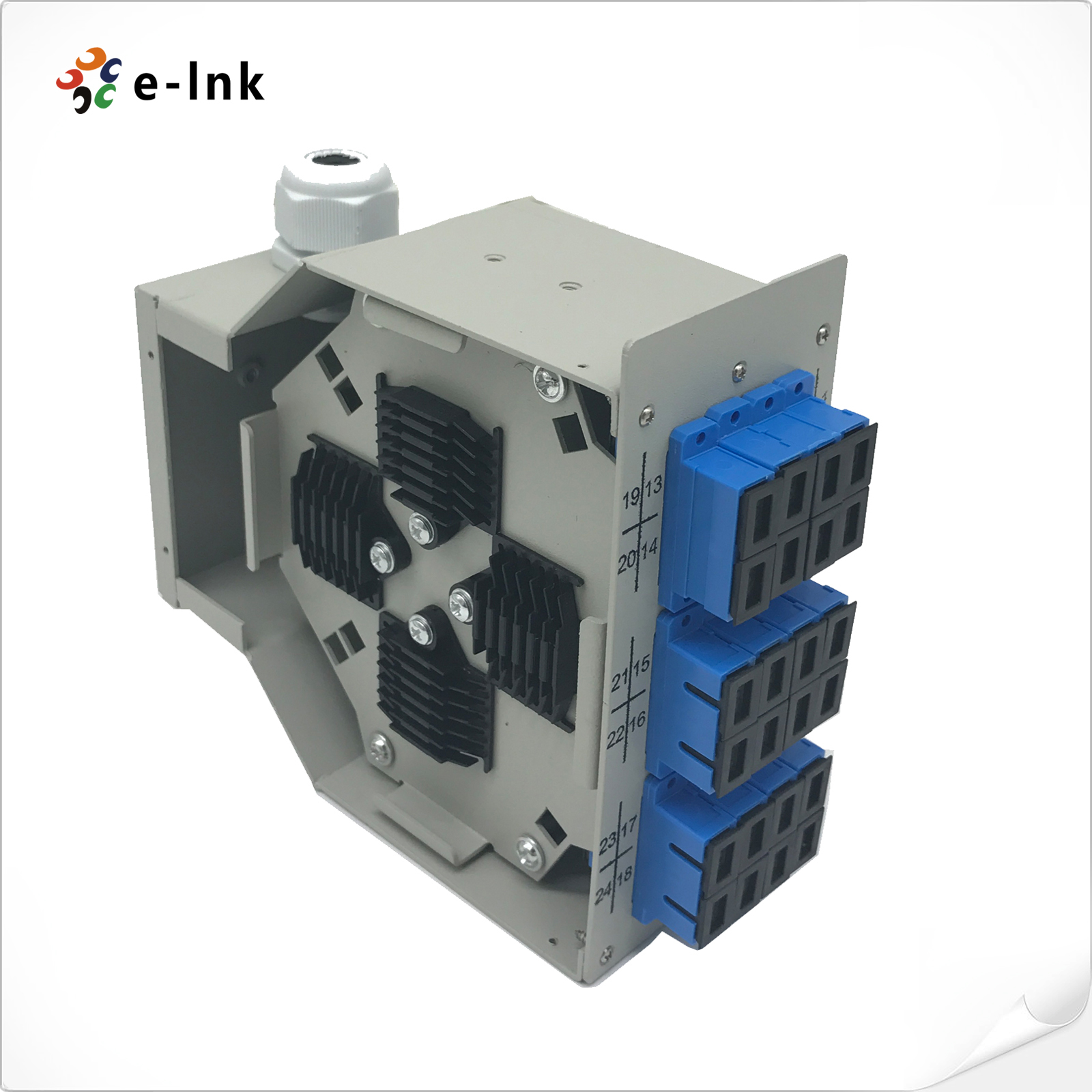

12SC Duplex Din-rail Mount Fiber Patch Panel

Name: 12SC Duplex Dinrail Mount Fiber Patch Panel
Brand: E-link
Price: 1 USD

Buy cheap 12SC Duplex Din-rail Mount Fiber Patch Panel product

Brand Name : E-link

Model Number : LNK-FSB-D-12SC

Certification : ISO9001,CE,ROHS,FCC

Place of Origin : China

MOQ : 1pcs

Price : negotiate

Payment Terms : T/T, Western Union, MoneyGram, PayPal

Supply Ability : 1000/Month

Delivery Time : 3-5 working days

Packaging Details : Mount Fiber Patch Panel Standard Carton Packaging

Adapters : 12 Ports Duplex SC

Installation : Din-rail Mounting

Material : Aluminum

Operating Temperature : -40°C To 80°C

SC-Duplex : Max. 12pcs

Weight : 0.6KG

Contact Now

12SC Duplex Din-rail Mount Fiber Patch Panel

Model:LNK-FSB-D-12SC

Overview

E-link 24-port industrial din-rail mount patch panels are designed for either to support direct termination

or fusion splicing of the fibers. The materials used for the patch panel is of high quality anodized aluminum

with natural finishes making it light weight and compact in size. Features designed to save space especially

when mounted within enclosures or cabinet with other din rail mount equipment. The patch panel can be

loaded with 12 SC duplex adapters.

Features

· Up to 12 ports SC-Duplex adapters

· Din-rail mounting

· Space-saving installation

· IP20 protection

· 2x rear entries (PG 11 cable gland)

· Grey color (RAL 7035)

· -40°C to 80°C (-40°F to 176°F) operating temperature

· Other configurations on demand

Application:

Suitable for Pigtail, ribbon and bunch cable connect distribution

Used for wall-mounted applications

Used in FTTH, Telecommunications, CATV ect.

12SC Duplex Din-rail Mount Fiber Patch Panel

Ordering information

Model	Description
LNK-FSB-D-12SC	12SC Duplex DIN-Rail Fiber Patch Panel: 2-cable entries, 12pcs SC/PC SM Duplex adapters

Product Tags:

DIN-Rail Fiber Splice Box

12 Ports Fiber Splice Box
