Mini HD-SDI over Fiber Extender

Name: Mini HDSDI over Fiber Extender
Brand: E-link
Price: 1 USD

Buy cheap Mini HD-SDI over Fiber Extender product

Brand Name : E-link

Model Number : LNK-MHD Series

Certification : ISO9001, CE, ROHS, FCC

Place of Origin : China

MOQ : 1 pair

Price : negotiate

Payment Terms : T/T, Western Union, MoneyGram, PayPal

Supply Ability : 1000/Month

Delivery Time : 3-5 working days

Packaging Details : SDI Fiber Extender Standard Carton Packaging

Power adaptor : 5V DC, Type-C Interface

Fiber interface : Simplex LC

Transmission distance : 550m-20Km

Video input/output impedance : 75Ω

Storage Temperature : -40℃～+80℃

Dimensions (LxWxH) : 79 x 27 x 18 mm

Contact Now

Mini HD-SDI over Fiber Extender

SDI Fiber Extender

► Each channel includes 8-channel audio embedded

► Automatic cable equalization to ensure signal integrity

► Automatic reclocking 270Mbit/s - 1.48Gbit/s

► Directly compatible with HD-SDI camera systems

► Long transmission capability up to 80 km

► Terminal block power input; Hot swap and hot plug;

► Full digital non-compression broadcast level transmission;

► Super optic dynamic range and free of adjustment;

► Fiber optic WDM/CWDM/DWDM technique;

Fiber Optical interface
Fiber interface	Simplex LC
Transmission distance	550m-20Km
Wavelength	1310nm/1550nm
Video
Video interface	BNC
Video input/output impedance	75Ω
Video input/output voltage	Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
Video Bits Rate	Max 1.48Gb/s
Differential gain (10%～90% APL)	<1%
SDI format support	625/25 PAL
	525/29.97 NTSC, 525/23.98 NTSC
	720p50, 720p59.94
	1080i 23/24/30/50/59.94
Video SDI standard	270Mbps (SD-SDI)
Video SDI standard	1.485Gbps (HD-SDI)
Electrical
Power adaptor	5V DC, Type-C Interface
Power consumption	<3W
LED Indicator
SDI	SDI video
P/T	Power Supply
Mechanical
Dimensions (LxWxH)	79 x 27 x 18 mm
Weight	0.5KG/pair
Casing	Aluminum Case
Mounting Options	Desktop
Environmental
Working Temperature	-20℃～+70℃
Storage Temperature	-40℃～+80℃
Operating humidity	5%~90% non-condensing
Storage humidity	5% ~ 90% non-condensing
MTBF	≥100000 hours

Mini HD-SDI over Fiber Extender

ordering information

Model	Description
LNK-MHD-MM	Mini HD-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs
LNK-MHD-20	Mini HD-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs

Product Tags:

HD-SDI over Fiber Extender

Mini HD-SDI Fiber Extender

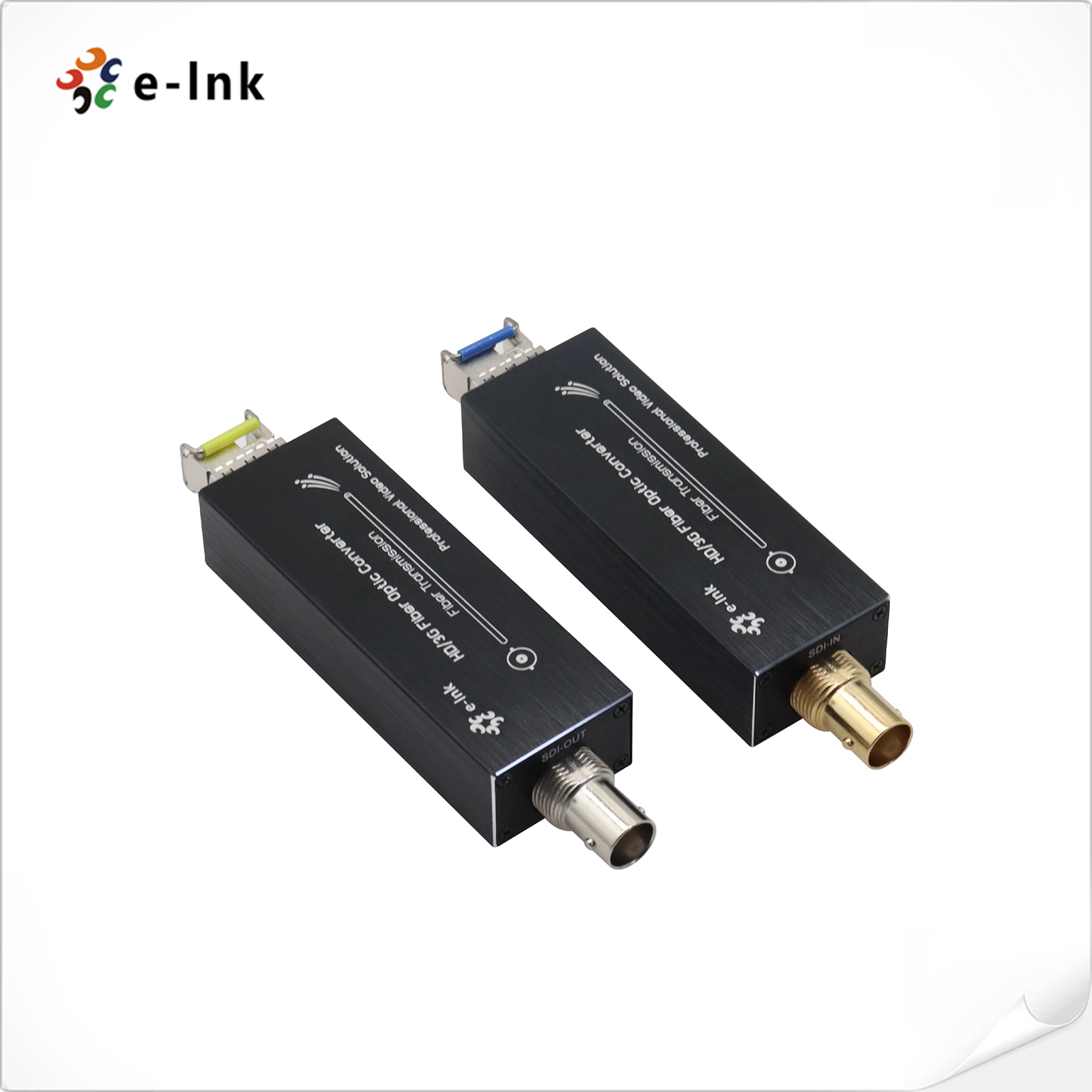

Mini HD-SDI over Fiber Extender Images
