FPP Series Rack Mount (Drawer Type) Fiber Patch Panel

Name: FPP Series Rack Mount Drawer Type Fiber Patch Panel
Brand: E-link
Price: 1 USD

Buy cheap FPP Series Rack Mount (Drawer Type) Fiber Patch Panel product

Brand Name : E-link

Model Number : E-link FPP Series

Certification : ISO9001 / CE / RoHS / FCC

Place of Origin : China

MOQ : 1pc

Price : Negotiate

Payment Terms : L/C, T/T, Western Union, MoneyGram, PayPal

Supply Ability : 1000000PCS/Month

Delivery Time : 1-3working days

Packaging Details : Fiber Optic Accessories Standard Carton Packaging

Materials : ABS plastic or steel

Finished product : black appearance, light and low

Working temperature : -40℃ ~ + 60℃

Curvature radius : ≥40mm

Lateral pressure-resistance : 500N

Resistance : 750N

Contact Now

FTB Series Fiber Termination Box (wall mount with lock)

Fiber Optic Accessories Advantages:

19" Rack, cabinet mountable
Excellent design
Tightness and durable
Optical fiber input: 4 ports
Adapter output: up to 144 ports
Fiber pigtail can provide reliable, perfect protection
The core and casing is insulation
Operate and install easily
FC/SC/ST/Others Adapters for Option, available

Overview

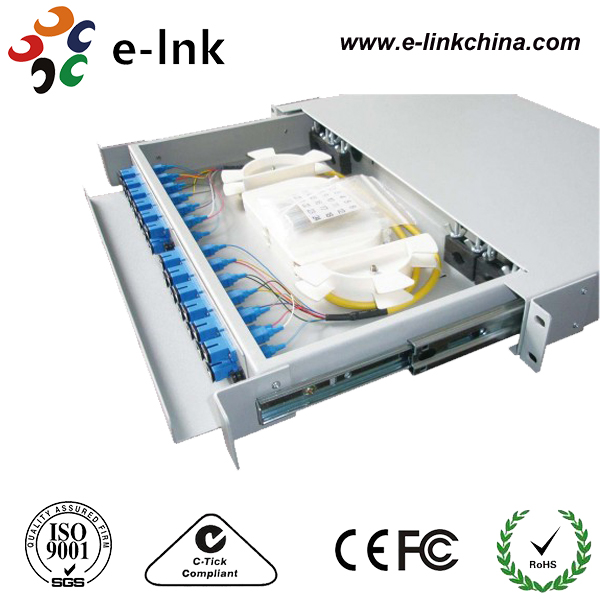

E-link FPP Series is Drawer Type of Rack Mount Slide Fiber Patch Panel is ranging from 12 ports

to 144 ports. It is suitable for the use in telecommunication network, central office optical cable

system and premise fiber network. The rack mount patch panel with 2 cable entry ports on the

back maximum is design in sliding structure. At the back of the box, there are 2 cable fixing

bayonets. The spice tray inside the box is made of ABS material which available for Ф0.9mm,

Ф2.0mm &Ф3.0mm Fiber Cable. Each Patch Panel is fully loaded with panels, adaptors, splices

trays and accessories and is ready for installation.

FPP Series Rack Mount (Drawer Type) Fiber Patch Panel

Application

Local Area Network
CATV Network
FTTx System
Wide Area Network
Test Instruments

Technical Parameters

Material	ABS plastic or steel
Finished product	black appearance, light and low
Cassette (splices trays)	2-12 cassettes
Cable input	2 cable entry ports
Adapters	Available for the installation of FC/SC/ST/Others Adapters
Working temperature	-40℃ ~ + 60℃
Design standard	TIA/EIA568.C, ISO/IEC 11801, En50173, IEC60304, IEC61754, EN-297-1
Curvature radius	≥40mm
Extra loss in the splice tray	none
Lateral pressure-resistance	500N
Resistance	750N
