Mini Industrial 10/100Base-T to 100Base-X SFP Fiber Ethernet Media Converter
Ethernet Media Converter Features
► 1 x 10/100BASE-T RJ45 port with auto MDI / MDI-X function
► 1 x SFP port,100Base-FX
► 1 x RS232/RS485/RS422 Serial port
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE) compliant
► Extensive LED indicators for network diagnostics
► Built-in surge and static protection
► 12~48VDC Terminal Block Power Input
► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature
Overview
LNK-IMCRS1100-SFP is a DIN rail type media converter that supports external SFP Modules and
meets EN55022 standard. It is a hardened grade product whose operating temperature range is
-40°C to +75°C. LNK-IMCRS1100-SFP supports 10/100Base-T and 100Base-X SFP and RS232/RS485/RS422
serial data. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of
SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed. It converts a standard RS232/RS485/RS422
signal / RJ45 data to a fiber optic link as to extend the signal up to 2Km on multimode fiber and 80Km on
single mode fiber.
Technical Indexes
| Ethernet |
| Standards | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Processing Type | Store-and-Forward |
| Forward Filter Rate | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| Packet Buffer Memory | 1 Mbit |
| Max Packet Length | 9K Bytes |
| Address Table Size | 2K MAC Addresses |
| Interface |
| Ethernet Port: | 1 x RJ45 |
| Optical Port: | 1 x SFP 100Base-FX |
| Serial Port | 1 x RS232/RS485/RS422 Industrial Terminal |
| RS232/RS485/RS422 |
| Serial Interface | Industrial Terminal |
| Signal Ports | 1Ch RS232 - 1Mbps 1Ch R485 - 1Mbps 2Ch RS485H- 2Mbps 2Ch RS485H can be grouped into 1Ch High Speed RS422 |
| Baud Rate | RS485/RS422/RS232:4800-460800 |
| Standard | EIA /TIA RS232/485/422 |
| Serial Distance | RS232: 15 meters, RS485/422: 1000 meters |
| Rate | Max 2Mbps |
| RS-232 | TXD, RXD, GND - Bi-directional |
| RS-485 | D+, D-, GND - Bi-directional |
| Static protection | 15KV electric static discharge (ESD) protection |
| Surge protection | 1500W/sec surge protection |
| Electrical and Mechanical |
| Input Power | 12~48VDC, 4-pin terminal block |
| Power Consumption | 3W Max. |
| Dimensions (WxDxH) | 95 x 70 x 30 mm |
| Weight | 0.25Kg |
| Casing | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| LED Indicators |
| PWR | Power Status |
| FX | Data LINK Status |
| 10/100M | Ethernet Status |
| DTX 1 2 3 4 | Serial Data Status |
| DRX 1 2 3 4 | Serial Data Status |
| Environmental |
| Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Regulatory Approvals |
| ISO9001, CE, FCC, RoHS |
| EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
| EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
Application
Ordering Information
| Model | Description |
| LNK-IMCRS1100-SFP | Mini Industrial 10/100Base-T to 100Base-X SFP Fiber Ethernet Media Converter with 1Ch RS232/RS485/RS422 |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
|
|

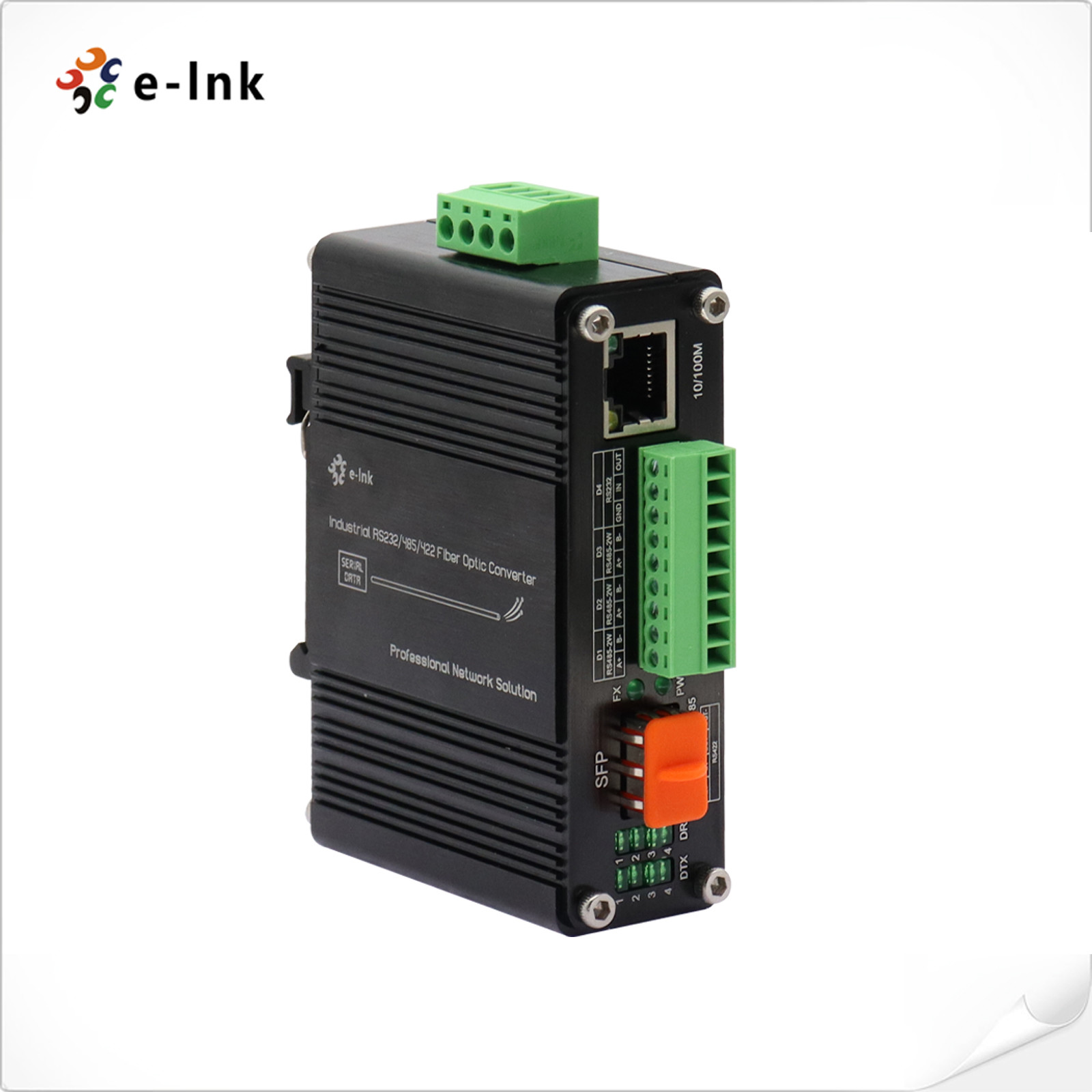

Mini Industrial 10/100Base-T to 100Base-X SFP Fiber Ethernet Media Converter Images
|
