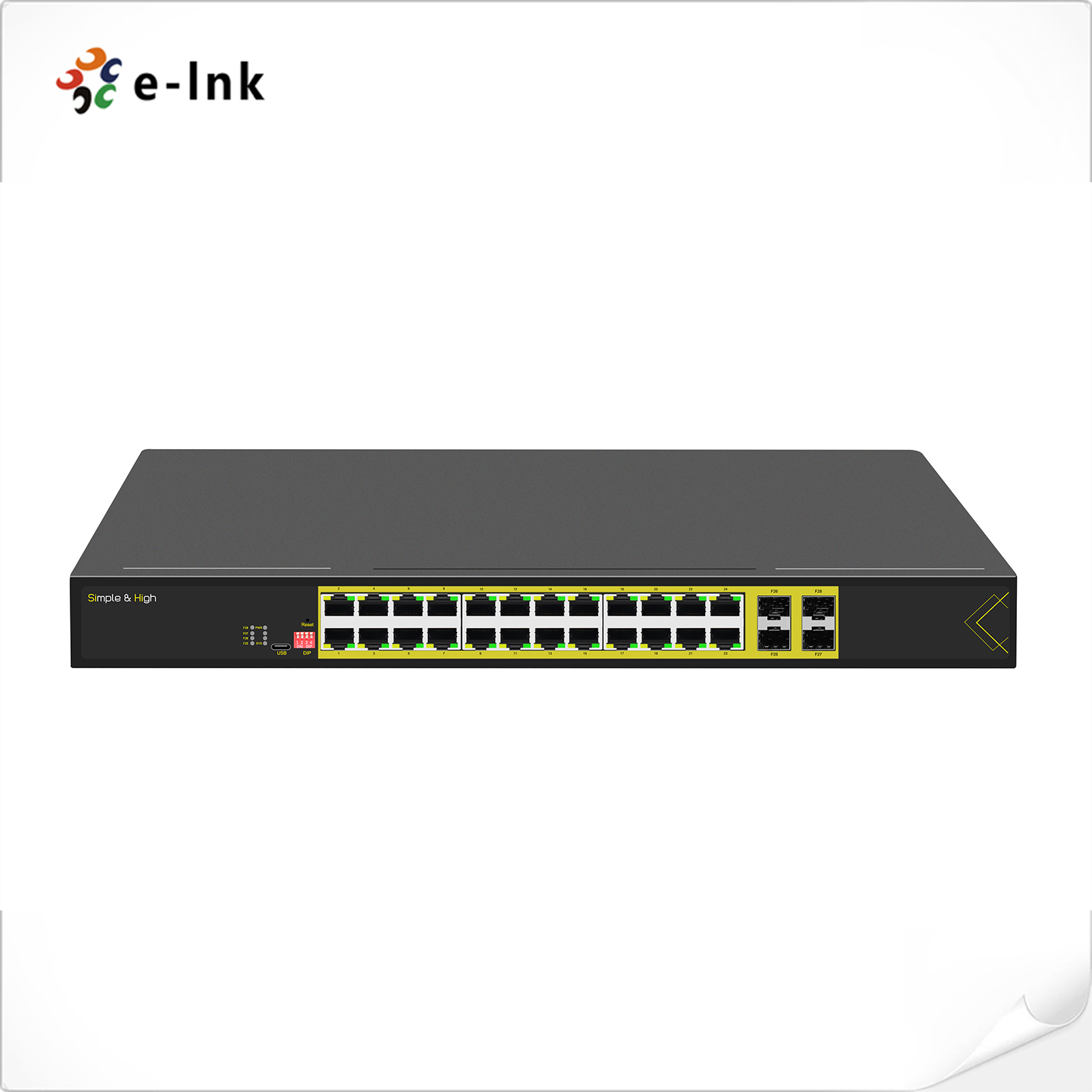

L2+ Managed Rack Mount 24-Port 10/100/1000T + 4-Port 1000X SFP Ethernet Switch

Name: L2 Managed Rack Mount 24Port 101001000T 4Port 1000X SFP Ethernet Switch
Brand: E-link
Price: 1 USD

Buy cheap L2+ Managed Rack Mount 24-Port 10/100/1000T + 4-Port 1000X SFP Ethernet Switch product

Brand Name : E-link

Model Number : LNK-424M-SFP

Certification : ROHS,FCC,CE

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 3-12 working days

Packaging Details : Carton Packaging

Ethernet Port : 24 x 10/100/1000Base-T RJ45

Optical Port : 4 x 1000Base-X SFP

Operating Temperature : 0°C to 55°C (-40°F to 176°F)

Storage Temperature : -40°C to 75°C (-40°F to 185°F)

Dimensions (WxDxH) : 440mm x 300mm x 45mm

Input Power : 12~48V DC, Redundant Power (4-pin Terminal Block)

Contact Now

L2+ Managed Rack Mount 24-Port 10/100/1000T + 4-Port 1000X SFP Ethernet Switch

Advantages

► Support 24x10/100/1000Base-T + 4x1000Base-X SFP

► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all

► 9K Bytes Jumbo Frame

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports 1U 19” Rack mount installation

Overview

LNK-424M-SFP series is the L2+ managed rack mount 24-port 10/100/1000Base-T + 4-port 1000Base-X SFP Ethernet switch. The switch has 24 TP ports and 4 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

Ordering Information

Model	Description
LNK-424M-SFP	L2+ Rack Mount 24-Port 10/100/1000T + 4-Port 1000X SFP Managed Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Rack mount, mounting clip is included.
Power Options	► Open Wire for Terminal Block.


L2+ Managed Rack Mount 24-Port 10/100/1000T + 4-Port 1000X SFP Ethernet Switch

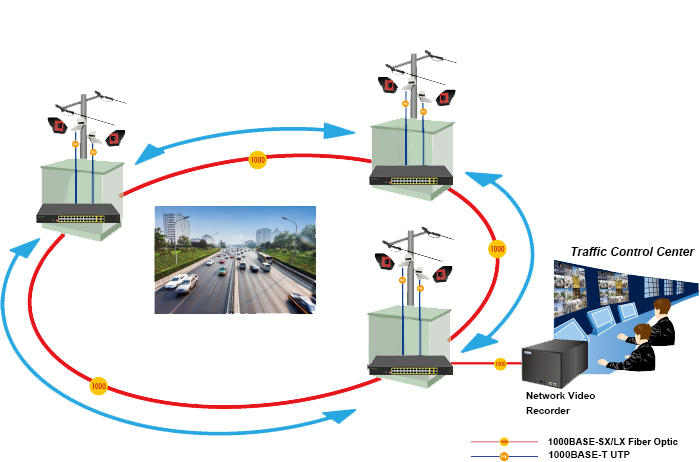

Application

L2+ Managed Rack Mount 24-Port 10/100/1000T + 4-Port 1000X SFP Ethernet Switch
