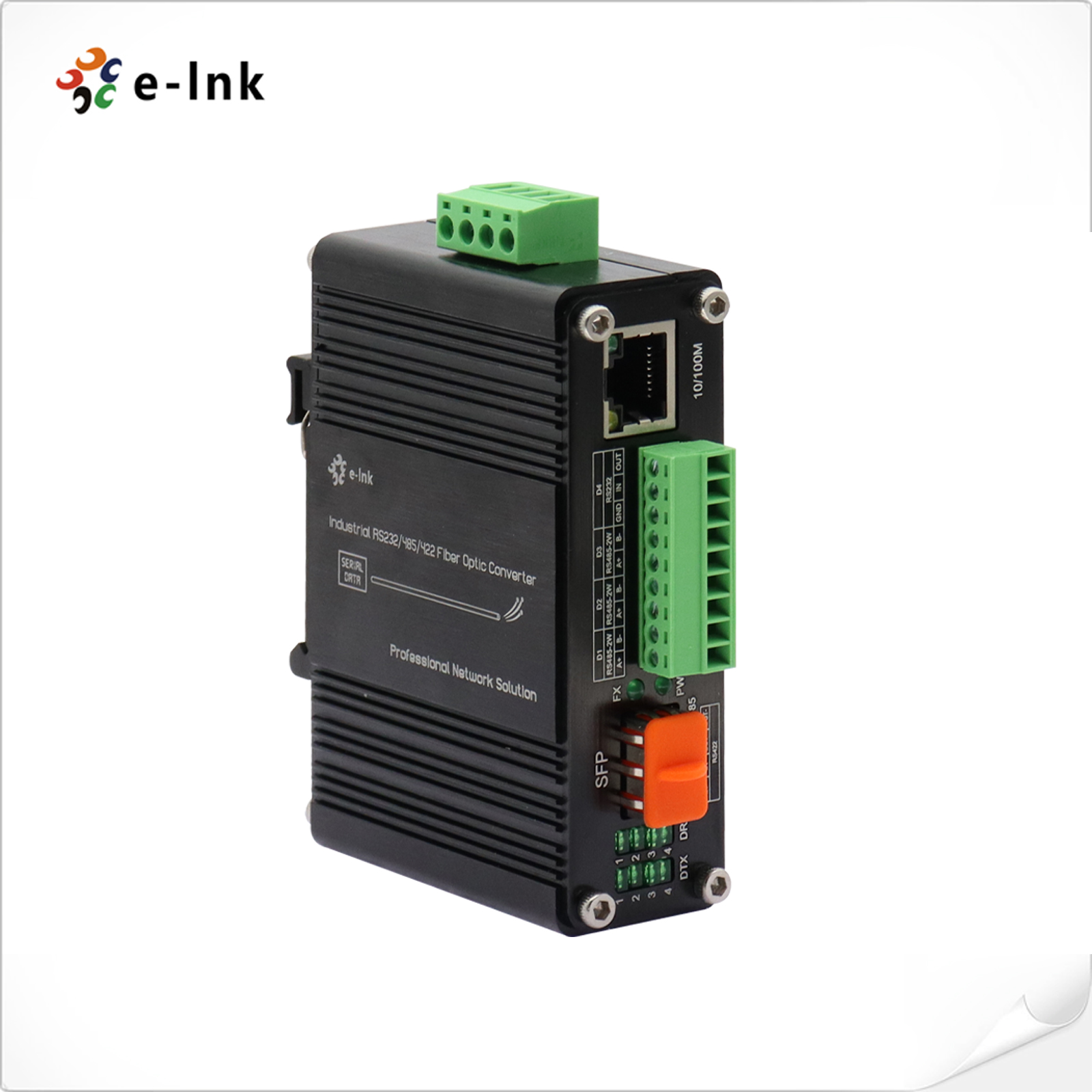

Mini Industrial 10/100Base-T to 100Base-X SFP Fiber Ethernet Media Converter with 1Ch RS232/RS485/RS422

Brand Name : E-link

Model Number : LNK-IMCRS1100-SFP

Certification : ROHS,FCC,CE

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability : 1000 pcs/month

Delivery Time : 3-12 working days

Packaging Details : Carton Packaging

Ethernet Port : 1 x RJ45

Optical Port : 1 x SFP 100Base-FX

Operating Temperature : -40°C to 75°C (-40°F to 167°F)

Storage Temperature : -40°C to 85°C (-40°F to 185°F)

Input Power : 12~48VDC, 4-pin terminal block

Dimensions (WxDxH) : 95 x 70 x 30 mm

Contact Now

Mini Industrial 10/100Base-T to 100Base-X SFP Fiber Ethernet Media Converter with 1Ch RS232/RS485/RS422

Advantages

► 1 x 10/100BASE-T RJ45 port with auto MDI / MDI-X function

► 1 x SFP port,100Base-FX

► 1 x RS232/RS485/RS422 Serial port

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE) compliant

► Extensive LED indicators for network diagnostics

► Built-in surge and static protection

► 12~48VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature


Overview

LNK-IMCRS1100-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK-IMCRS1100-SFP supports 10/100Base-T and 100Base-X SFP and RS232/RS485/RS422 serial data. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed. It converts a standard RS232/RS485/RS422 signal / RJ45 data to a fiber optic link as to extend the signal up to 2Km on multimode fiber and 80Km on single mode fiber.


Ordering Information

Model

Description

LNK-IMCRS1100-SFP

Mini Industrial 10/100Base-T to 100Base-X SFP Fiber Ethernet Media Converter with 1Ch RS232/RS485/RS422

SFP Options

► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.



Mini Industrial 10/100Base-T to 100Base-X SFP Fiber Ethernet Media Converter with 1Ch RS232/RS485/RS422

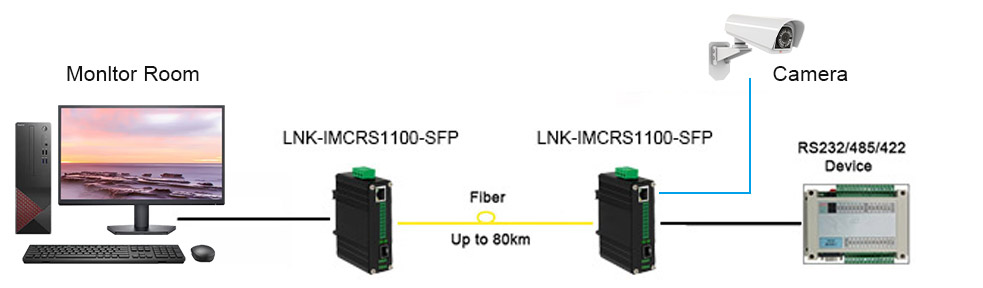

Application

Mini Industrial 10/100Base-T to 100Base-X SFP Fiber Ethernet Media Converter with 1Ch RS232/RS485/RS422
