Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE
+ 1-Port 10/100/1000T Ethernet Switch
Mini Industrial Managed PoE Ethernet Switch Advantages
► 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ (Port-1 to Port-4)
► 12~48V DC wide range power input
► Supports 802.3x Flow control
► Supports WEB Management
► Supports DIN-Rail and Wall-mount installation
► Up to 120-watt PoE budget (48V DC),
► Up to 90-watt PoE budget (24V DC),
► Up to 60-watt PoE budget (12V DC)
► -40°C to 80°C (-40°F to 176°F) operating temperature
Overview
LNK-IMC005GPM Series is a Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE
+ 1-Port 10/100/1000T Ethernet Switch with 12~48V DC wide range power input. This managed
industrial Ethernet switch is designed to match the critical industrial standards. With reliable and
simple operation against vibration and shock, and wide operation temperature range, it could match
a variety of harsh environment. The switch complies with CE and FCC standards, and passed the
100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice
for an economical solution for industrial Ethernet connections.

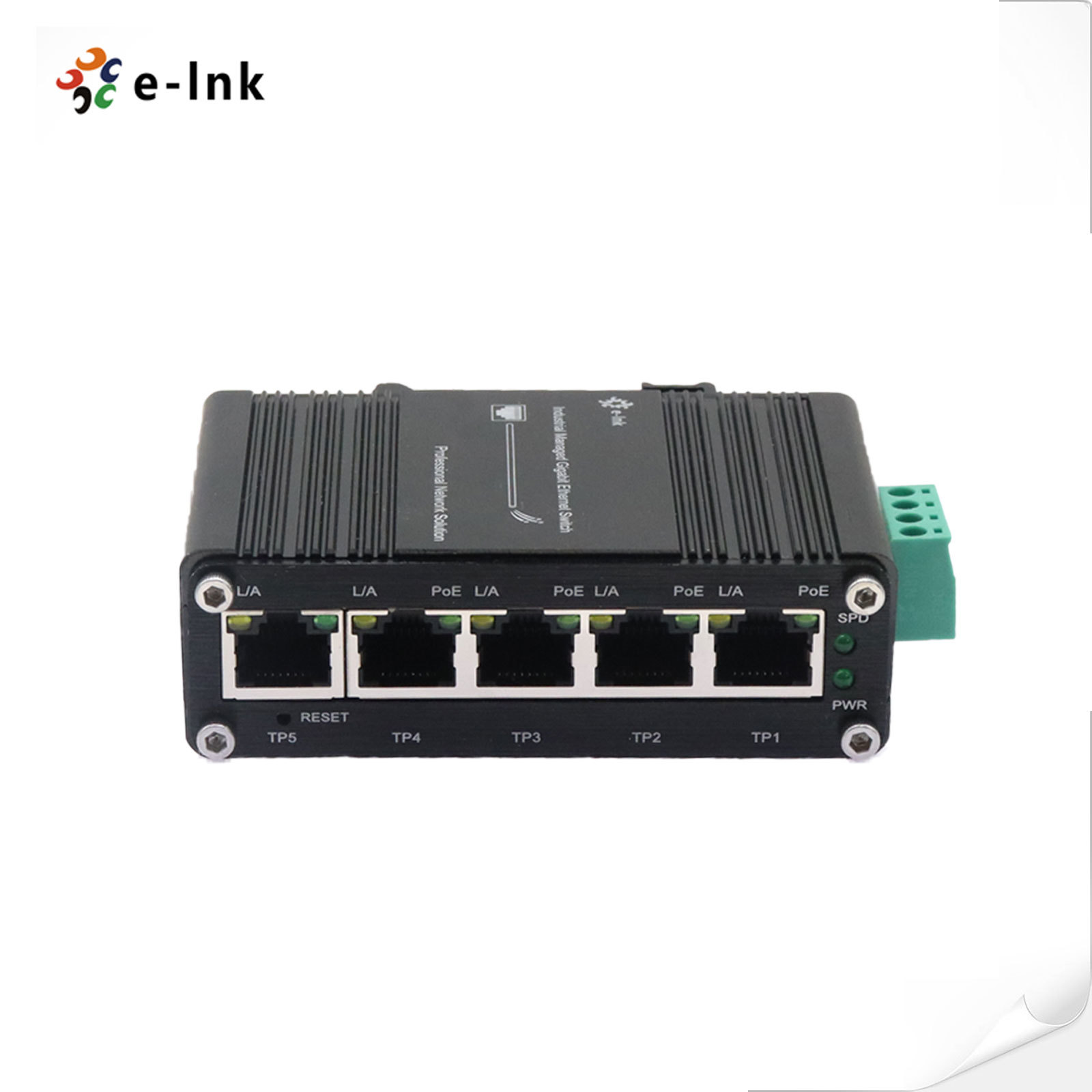

Mini Industrial Managed PoE Ethernet Switch Picture
Technical Indexes
| Environmental |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | <125W (Non-PoE<6W) |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Reset Button | Support |
| Dimensions (WxDxH): | 95 x 70 x 29 mm |
| Weight: | 0.25KG |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| LED Indicators |
| PWR | Power |
| SPD | Data rate |
| L/A | Link/Activity |
| PoE | PoE Status |
| WEB Management Features |
| System Settings | Device Info; Account Settings; Restoring; Reboot; Upgrade |
| Port Management | Port Settings; Port Mirroring; Port Statistics; Rate Limit |
| VLAN Settings | 802.1Q VLAN; PVID Settings; Hybrid Port |
| QOS Settings | Priority Selection; Scheduling Mode |
| Loop Detection | Support |
| Saving Settings | Get Configuration; Restore Configuration; Saving Configuration |
| Default IP | 192.168.40.253 |
| Default User Name | admin |
| Default Password | admin |
Application
Ordering Information
| Model | Description |
| LNK-IMC005GPM | Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately ► Recommend MeanWell NDR-120-48 |
