EN50155 Industrial 10/100/1000M/2.5G/5G/10G 30W PoE Injector with M12 connector
Advantage
► 12~48V DC Power Input
► Fully compliant with IEEE802.3af/at
► Support 10/100/1000/2.5G/5G/10G Base-TX for power and data output
► Support DIN-Rail & Wall-mount installation
► Aluminum Case
► Extensive LED indicators for PoE diagnostics
Overview
E-link EN50155 compliant PoE Injectors are designed for industrial applications, such as rolling stock, vehicle,
and railway applications. The PoE Injector is an advanced IEEE802.3at compliant device with Intelligent Detection
that provides 1-port 10/100/1000/2.5G/5G/10G Base-T(X) PoE output which is compliant with EN50155. It is
specifically designed for the toughest industrial environments. The EN50155 PoE Injector uses M12 connectors
to ensure tight, robust connections, and guarantee reliable operation during environmental disturbances, such
as vibration and shock. The device does not turn on power until it detects a valid PoE signature from the PoE
devices attached downstream in the network. This provides protection against damage to non-PoE compliant
devices which may be connected to the Ethernet cable.
Technical Indexes
| Ethernet |
| Standards: | IEEE802.3af Power over Ethernet |
| | IEEE802.3at Power over Ethernet |
| Processing Type: | Forward |
| | Half-duplex, Full-duplex |
| Forward Filter Rate: | 1,488,0000pps (10Gbps) |
| Cabling: | 10/100/1000/2.5G/5G/10G Base-T |
| Connector: | 2x M12 connector (8-pin female M12 A-coding) |
| Environmental |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical |
| Input Power: | 12~48V DC on 4-pin female M12 A-Coding |
| Power Consumption: | 36W Max. |
| PoE (Power over Ethernet) |
| Standard: | IEEE802.3af/at |
| Port: | M12 connector (8-pin female M12 A-coding) |
| Max. Power per Port: | 30W Max |

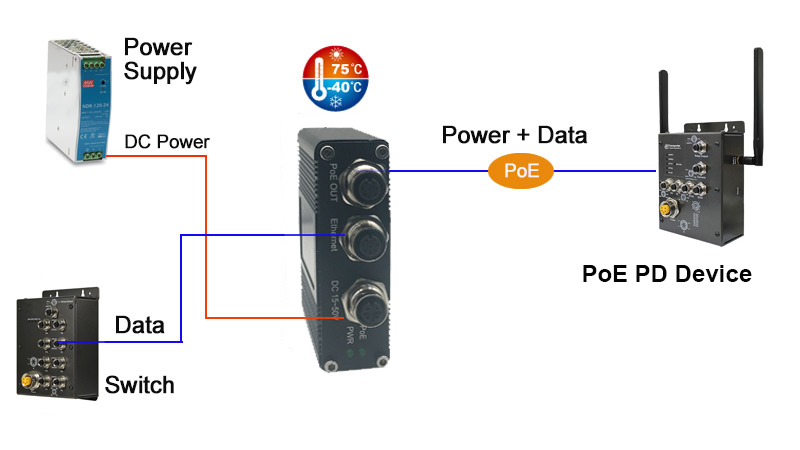

Application
Ordering Information
| Model | Description |
| LNK-INJ601-M12 | EN50155 Industrial 1-port 10/100/1000M/2.5G/5G/10G M12 PoE Injector 12~48V DC Power Input |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
