10/100M 1-Port PoE Extender & 4-Port PoE Extender

10/100M 1-Port PoE Extender & 4-Port PoE Extender

Product Advantages

· Comply with IEEE 802.3af Power over Ethernet.

·  10/100M Supported.

· Extend the range of PoE an additional 120 meters.

· Automatically detects and protects PoE equipment  from being damaged by incorrect installation

· Plug-and Play no configuration required

· 4-Ports PoE Extender can forward both Ethernet and PoE power for 4 terminal equipment  via Cat5 UTP cables

· 1-Ports PoE Extender can forward both Ethernet and PoE power for 1 terminal equipment  via Cat5 UTP cables

Overview

E-link 1-Port PoE Extender has 2 10/100M LAN ports, among them, one for power input, the other for power output. Comply with 10/100BASE-TX,IEEE802.3af(PoE). Power input for single port is 13W. Power output for single port is 12.2W.

4-Ports PoE Extender has 5 10/100M PoE ports, among them, 1 port for power input, and others for power output. Comply with 10/100BASE-TX, IEEE802.3at (power-in) /IEEE802.3af(power-out). The power input is 25.5W in total. Power output for single port is 15.4W( max).

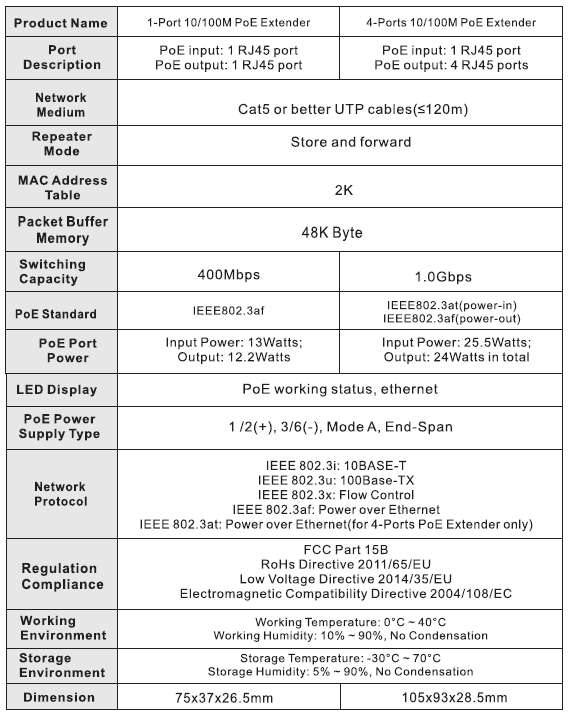

Technical Indexes

Ordering Information

1 Port PoE Extender

4 Port PoE Extender

10/100M 1-Port PoE Extender & 4-Port PoE Extender Images
