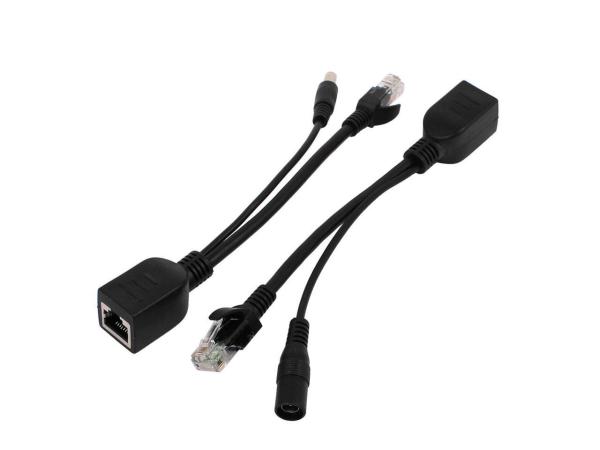

Passive PoE Kit (Passive PoE Splitter + Passive PoE Injector)

Brand Name : E-link

Model Number : LNK-POE-2P

Certification : CE, FCC, IP67

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability : 100000PCS/Month

Delivery Time : 7-10 working days

Packaging Details : Industrial PoE Switch Standard Carton Packaging

Weight : 0.25Kg

Dimensions (WxDxH) : 95 x 70 x 30 mm

Operating Temperature : -40°C to 80°C (-40°F to 176°F)

Case : Aluminum Case

Mounting Options : DIN-Rail / Wall-mount

Power Consumption : 36W Max.

Contact Now

Passive PoE Kit (Passive PoE Splitter + Passive PoE Injector)
Product Advantages
  • Passive PoE Splitter + Passive PoE Injector
  • Easy to install PoE Application for AP, CPE, IPCam, IP Phone
  • Use the Power Supply from Powered Device
  • Accept up to 57V Voltage Input
Overview
LNK-POE-2P is a passive Power over Ethernet kit, including one passive splitter and one passive injector. It provides the most convenient and cost effective way for you to make PoE application, you do not worry about how to find power outlet when using AP or IPCam. It uses the power adapter that comes with your network device. There is no need for special PoE power adapter.
Technical Indexes
Interface Data pin: 1,2,3,6
Power pin: 4, 5, 7, 8 (12~57V)
Case of material PVC
Network cable T IA/EIA 568 Cat. 5
Ethernet data rate 10/100 Mbps
Ethernet cable connector RJ-45
Operating Temperature 0°C - 40°C (32°F - 104°F)
Storage temperature -40°C - 70°C (-40°F - 158°F)
Operating Humidity 10% ~ 80% (non-condensing)
Storage Humidity 5% ~ 90% (non-condensing)
Product Weight (g) 55g
Dimensions (L x W x H (mm)) 210 x 19 x 19 mm
Ordering Information
Item Description
LNK-POE-2P Passive PoE Kit: Passive PoE Splitter + Passive PoE Injector
