Packet Forwarding Rate 47.624Mpps PoE Ethernet Switch Unmanaged 24 Port
Unmanaged 24-port 100Base-FX SC + 2-10/100/1000-TX Optical Fiber Switch
Features:
► 24x100Base-FX SC Ports + 2x10/100/1000Base-TX Ports
► Supports 10/100/1000Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDI-X at TX
► Supports external 100BASE SC hot swap
► Supports 2K MAC address
► 1M bits frame buffer memory
► 19-inch 1U Rack
► Operating Temperature: -10°C to 60°C
► 110~240VAC Power Inputs
► Aluminum Case
► Lightning Protection Design
Technical Indexes
| Ethernet | | Standards: | IEEE802.3 10BASE-T | | IEEE802.3u 100BASE-TX | | IEEE802.3u 100BASE-FX | | IEEE802.3ab 1000BASE-T | | Forward & Filtering Rate: | 14,880pps (10Mbps) | | 148,800pps (100Mbps) | | 1,488,000pps (1000Mbps) | | Processing Type: | Store-and-Forward | | Max Packet Length: | 1522 Bytes | | Address Table Size: | 2K MAC Addresses | | Backplane capacity | 25.6G | | RJ45 Port | 2*10/100/1000Base-T(X) | | Optical Port: | 24*100Base-FX SC | | Environmental | | Operating Temperature: | -10°C to 60°C | | Storage Temperature: | -40°C to 85°C | | Relative Humidity: | 5% to 95% non-condensing | | Electrical and Mechanical | | Input Power: | 110~220VAC | | Power Consumption: | 25W Max. (Off-load) | | 40W Max. (Full load) | | Dimensions (WxDxH): | 485 x 235 x 45 mm | | Weight: | 2560g | | Casing: | Metal Case, IP40 protection | | Regulatory Approvals | | ISO9001 | | EN55022:2006+A1: 2007 Class A | | Surge Protection: | | RJ45: 1KV | | Power: 500V | | ESD: 4KV | |
Overview
LNK-FS24SC02 series is an Optical fiber switch that offers 24 100Base-FX SC fiber ports and 2 Gigabit Ethernet ports. It supports both Single optical fiber and dual optical fiber, its transmission distance ranges from 2km to 120km. This optical fiber switch works under both Half-duplex and full-duplex modes. It is an ideal option for fiber to home (FTTH) optical fiber solution, city optical fiber networks, etc.
Ordering Information
| Model | Description |
| LNK-FS24SC02-MM | Unmanaged 24-port 100Base-FX SC (Multimode Dual Fiber 2KM, 1310nm) + 2-10/100/1000-TX Optical Fiber Switch |
| LNK-FS24SC02-SM | Unmanaged 24-port 100Base-FX SC (Single Mode Dual Fiber 20KM, 1310nm) + 2-10/100/1000-TX Optical Fiber Switch |
| LNK-FS24SC02-SS | Unmanaged 24-port 100Base-FX SC (Single Mode Single Fiber 20KM, 1310nm TX/1550nm RX) + 2-10/100/1000-TX Optical Fiber Switch |
|
|

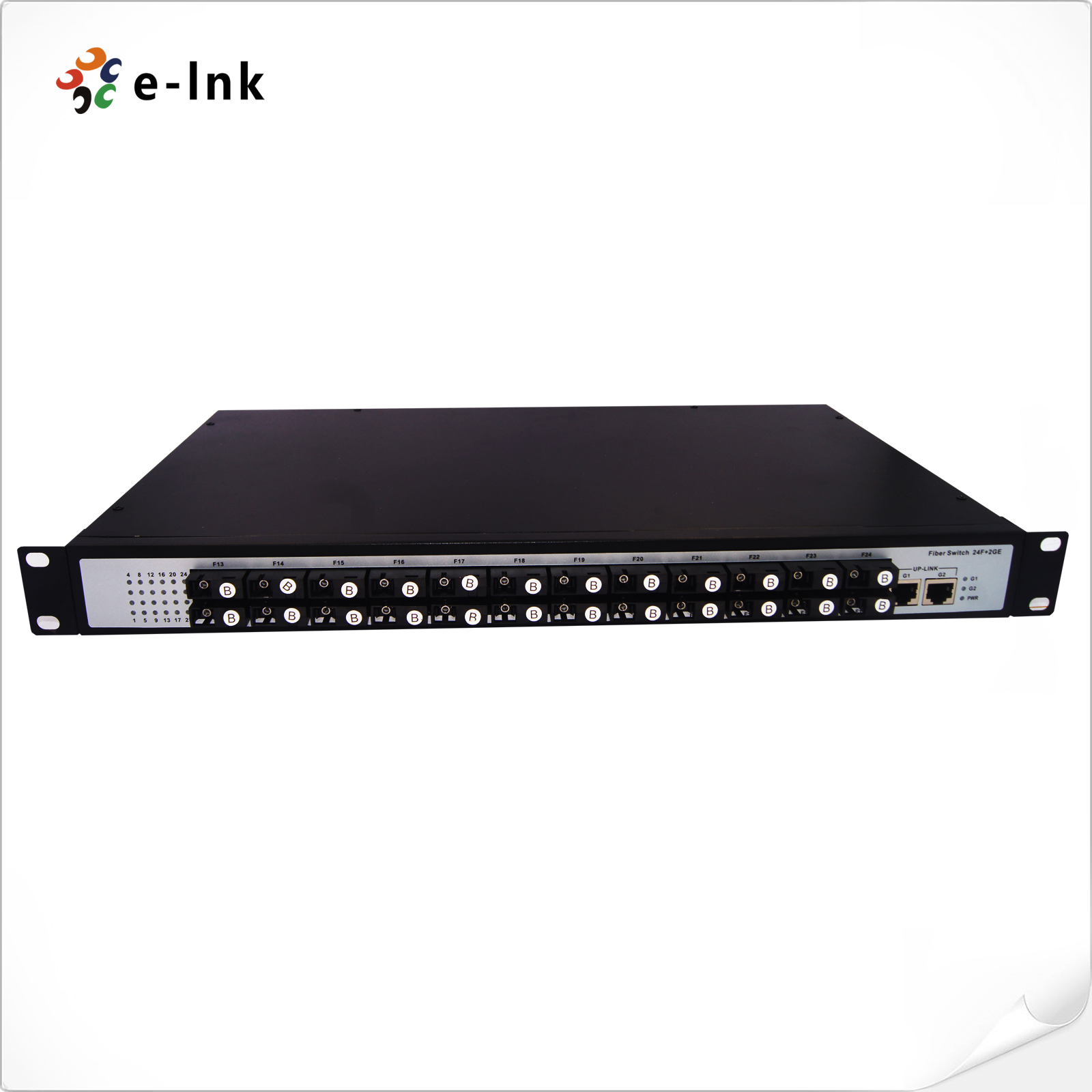

Unmanaged 24-port 100Base-FX SC + 2-10/100/1000-TX Optical Fiber Switch Images
|
