Unmanaged Industrial 8-port 10/100BASE-T Ethernet Switch
Model: LNK-IMC008
Overview
The LNK-IMC008 is a cost-effective Unmanaged Industrial 8-port 10/100BASE-T Ethernet
Switch, specifically engineered to deliver reliable connectivity for industrial networking environments
without the need for complex configuration. As an Unmanaged Industrial 8-port 10/100BASE-T Ethernet
Switch, it features 8 TP ports, making it an ideal solution for small to medium-scale industrial deployments
that prioritize simplicity and stability in network connections.
This unmanaged industrial Ethernet switch is designed to meet critical industrial standards, with a focus
on robust performance in challenging conditions. It exhibits strong resistance against vibration and shock,
ensuring uninterrupted operation even in high-activity industrial settings such as factory floors, assembly
lines, and logistics hubs. Additionally, its wide operating temperature range further enhances its adaptability,
allowing it to function reliably in extreme thermal environments—from freezing cold to high-heat conditions—
common in outdoor industrial zones or enclosed machinery spaces.
The LNK-IMC008 complies with CE and FCC standards, underscoring its adherence to international regulatory
requirements for electromagnetic compatibility and safety. It has also successfully passed a 100% burning test,
a rigorous validation process that guarantees its ability to meet the long-term reliability demands of industrial
applications. The Unmanaged Industrial 8-port 10/100BASE-T Ethernet Switch offers a user-friendly experience
with simple operation, eliminating the need for specialized technical expertise during setup and maintenance.
This combination of durability, compliance, and ease of use makes it a highly economical choice for establishing
stable industrial Ethernet connections, catering to the needs of businesses seeking a reliable yet cost-effective
networking solution for harsh environments.
Features
► 8 10/100Base-TX ports
► RJ45 Port Supports 10/100Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail and Wall-mount installation
► Redundant 12～58VDC Power Inputs
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
► -40°C to 80°C (-40°F to 176°F) operating temperature
Technical Indexes
| Ethernet |
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| IEEE802.3x Flow Control |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| Cabling | 10Base-T: Cat5 or above |
| 100Base-TX: Cat5 or above |
| Maximum Distance | Cat5 UTP up to 100m |
| Interface |
| Connector: | 8 x RJ45 |
| Environmental |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical |
| Input Power: | 12~58VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 5W Max. |
| Protection: |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: |
| Power: | Power1, Power2 Status |
| Ethernet (Per Port): | Link/Activity |
| Dimensions (WxDxH): | 150 x 115 x 50 mm |
| Weight: | 0.6Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Regulatory Approvals |
| ISO9001 |
| EN55022:2010+AC: 2011, Class A |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
| EN 61000-3-3: 2013 |
| EN55024:2010 |
| IEC 61000-4-2: 2008 (ESD) |
| IEC 61000-4-3: 2010 (RS) |
| IEC 61000-4-4: 2012 (EFT) |
| IEC 61000-4-5: 2014 (Surge) |
| IEC 61000-4-6: 2013 (CS) |
| IEC 61000-4-8: 2009 (PFMF) |
Ordering Information
| Model | Description |
| LNK-IMC008 | Industrial 8-port 10/100BASE-T Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
Application
Product Tags:
|
|

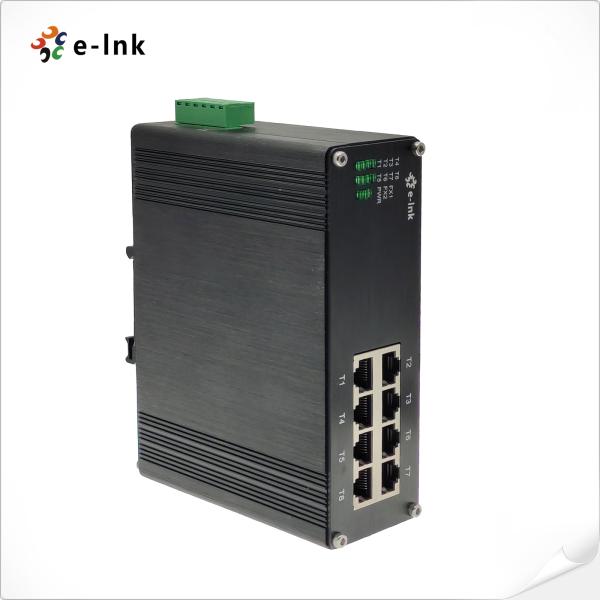

Unmanaged Industrial 8-port 10/100BASE-T Ethernet Switch Images
|
