1.25Gb/s 80km CWDM SFP Transceiver
Advantages
Ø Data-rate of 1.25Gbps operation
Ø 18-Wavelength CWDM DFB LD Transmitter from
Ø 1270nm to 1610nm, with Step 20nm
Ø Compliant with SFP MSA and SFF-8472
Ø Compatible with SONET OC-24-LR-1
Ø Compatible with RoHS
Ø +3.3V single power supply
Ø Hot-Pluggable SFP Footprint Duplex LC
Ø Operating case temperature Standard: 0°C to +70°C Extended: -20°C to +85°C
Industrial: -40°C to +85°C
Overview
The LNK-CSFP-1Gxx-80 series single mode transceiver is small form factor pluggable module for duplex optical data communications such as Gigabit Ethernet 1000BASE-ZX and Fiber Channel 1x SM-LC-L FC-PI. It is with the SFP 20-pin connector to allow hot plug capability. This module is designed for single mode fiber and operates at a nominal wavelength of CWDM wavelength. There are eighteen center wavelengths available from 1270nm to 1610nm, with each step 20nm.
The transmitter section uses a multiple quantum well CWDM DFB laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. The LNK-CSFP-1Gxx-80 series are designed to be compliant with SFF-8472.
Technical Indexes
|
Parameter
|
Symbol
|
Min.
|
Typical
|
Max.
|
Unit
|
Note
|
|
Transmitter Section:
|
|
Center Wavelength
|
λc
|
λ-6
|
λ
|
λ+7.5
|
nm
|
|
|
Spectral Width(-20dB)
|
△λ
|
|
|
1
|
nm
|
|
|
Side Mode Suppression Ratio
|
SMSR
|
30
|
|
|
dB
|
|
|
Optical Output Power
|
Pout
|
0
|
|
+5
|
dBm
|
1
|
|
Optical Rise/Fall Time
|
tr / tf
|
|
|
260
|
ps
|
2
|
|
Extinction Ratio
|
ER
|
8.2
|
|
|
dB
|
|
|
Eye Mask for Optical Output
|
Compliant with IEEE802.3z(class 1 laser safety)
|
|
|
Receiver Section:
|
|
|
Optical Input Wavelength
|
λc
|
1260
|
|
1620
|
nm
|
|
|
Receiver Overload
|
Pol
|
-8
|
|
|
dBm
|
3
|
|
RX Sensitivity
|
Sen
|
|
|
-24
|
dBm
|
3
|
|
RX_LOS Assert
|
LOS A
|
-40
|
|
|
dBm
|
|
|
RX_LOS De-assert
|
LOS D
|
|
|
-25
|
dBm
|
|
|
RX_LOS Hysteresis
|
LOS H
|
0.5
|
|
|
dB
|
|
|
General Specifications:
|
|
Data Rate
|
BR
|
|
1.063/1.25
|
|
Gb/s
|
|
|
Bit Error Rate
|
BER
|
|
|
10-12
|
|
|
|
Max. Supported Link Length on
9/125μm SMF@1.25Gb/s
|
LMAX
|
|
80
|
|
km
|
|
|
Total System Budget
|
LB
|
24
|
|
|
dB
|
|
Application
Ø Gigabit Ethernet
Ø Fiber Channel Switch Infrastructure
Ø Router/Server interface
Ø Other optical transmission systems
|
|

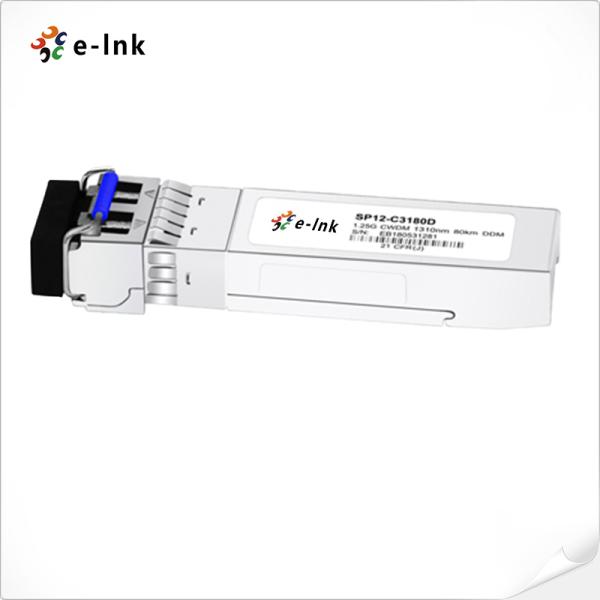

1.25Gb/s 80km CWDM SFP Transceiver Images
|
