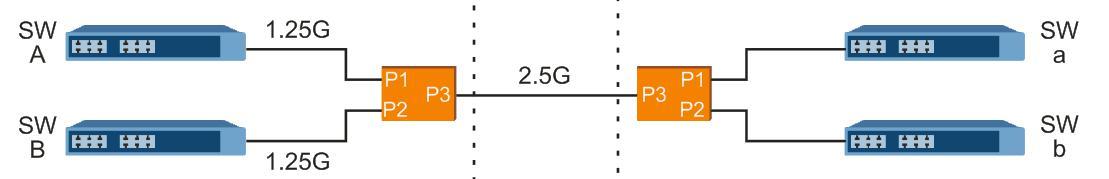

2x1.25G to 2.5G SFP Fiber Multiplexer, 2x1.25G SFP ports to 1x2.5G SFP ports, Support point-to-point topology function

Optical Fiber

Standards

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-SX/LX/LH

Interface Type

1000Base-SX/LX/LH

Optical Connector

SC/PC,LC/PC

Transmission distance

220m~120Km (Depending on SFP Module)

Multi-mode Fiber

50/125 or 62.5/125µm

Single-mode Fiber

9/125µm

Optical Port

2 x 1.25G SFP + 1 x 2.5G SFP

Date Transfer Rate

SFP1 and SFP2

1.25Gbps

SFP3

2.5Gbps

Frame Loss Rate

0% (64 ~1518 bytes @ 100% data rate)

Frame rate

100% line rate

Maximum Frame size

up to 10000bytes

Latency

2500ns/pair (Connected by short jumper line)

Power Requirement

Power Consumption

4W Max.

Power Adaptor

220V(110-245V)AC,50Hz

Voltage

+5VDC

LED Indicators

P3 LNK (Green Color)

ON: 2.5G Uplink is on.

Blinking: Data transmission is on

P2 LNK (Green Color)

ON: SFP2 connecting is on.

Blinking: Data transmission is on

P1 LNK (Green Color)

ON: SFP1 connecting is on.

Blinking: Data transmission is on

PWR (Green Color)

ON: Power supply is normal

Network management function

All the LED status

Support

Connection status of the 3 port

Support

DDM Function on SFP Module

Support

Mechanical

Dimensions (W x D x H)

80 x 25 x 120 mm

Weight

0.65Kg

Casing

Metal Case

Mounting options

Desktop

Environmental

Operation Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Relative Humidity

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001,CE, FCC, RoHS
